The Power of Activity and Sequence Diagrams for Team Alignment in Software Development

article hero banner

Activity and sequence diagrams are essential tools in the software development process. These diagrams help teams visualize the workflow and interactions of their system, providing a common language for all team members to use when discussing and aligning product and technical requirements.

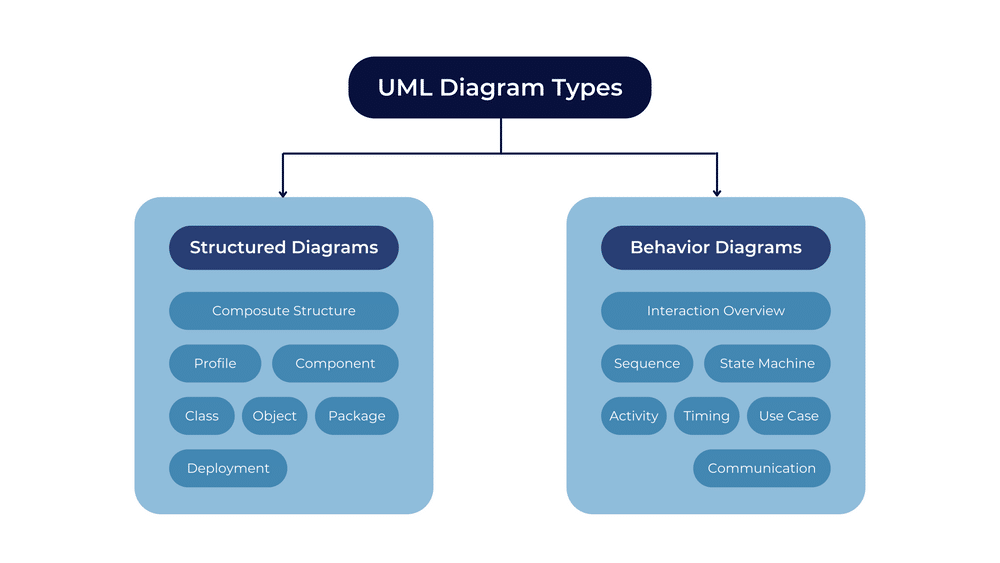

Understanding Universal Modelling Language

Universal Modeling Language (UML) is used to ensure that there is a common, semantically and syntactical modeling system that consists of diagrams and visual graphics that will help developers and stakeholders understand, visualize, construct and document software applications and systems.

In software development, UML is used to visualize projects and is used in activity diagrams and sequence diagrams.

What are Activity Diagrams

Activity diagrams are used to represent and document the business and software processes as a progression of actions. They are similar to flowcharts because they provide a visualization of the flow between actions in an activity or process. The diagrams are typically used before the start of the project to help model important workflows, during the discovery or requirement phase to illustrate the flow of events on specific use cases, and during the analysis and design phase where they define the behavior of operations.

Activity diagrams show the different steps involved in a process, as well as the decisions that need to be made along the way. This helps teams ensure that all necessary tasks are accounted for and that the workflow is efficient and effective.

Activity Diagrams Symbols and Notations

Activity diagrams have specific UML symbols that help concisely visualize the items and the flow of the action.

Name

Description

Symbol

Initial State

The symbol represents the beginning or start point of a process or workflow in the activity diagram.

Action/ Connector Flow

The arrows visualize the flow of one action to another.

Action/ Activity State

The activity symbol is represented by a box that has rounded edges. They represent the activities that are modeled in the process.

Branches and Decisions

The symbol visualizes a decision node in the diagram and has at least two paths branching out of the symbol with conditions that provide information on the flow.

Fork Symbol

The symbol represents a split in a single activity flow into two concurrent activities.

Joint/Synchronization Symbol

The join symbol is a representation of two concurrent activities that join into one activity flow.

Final/ End State

The symbol represents the end state of an activity and indicates that the flow of a process has been completed.


What are Sequence Diagrams

Sequence diagrams, on the other hand, focus on the interactions between different components of a system. They show the messages that are sent between these components, and the order in which they are sent. This allows teams to see how different parts of the system will work together and identify any potential issues or bottlenecks.

In software development, sequence diagrams are a Unified Modeling Language (UML) that provides a visual representation of the sequence of messages between objects in a specific interaction. Sequence diagrams can also be used to show control structures between objects.

Sequence Diagram Symbols and Notations

A sequence diagram is represented by specific symbols and notations that represent the behavior between objects within a system.

Name

Description

Symbol

Object

The symbol visualizes a class or object in the diagram.

Actor

The symbol for actor in the diagram. They represent how users interact with the system.

Activation Box

The activation box is represented by a thin upright rectangular box. They indicate the time needed for an object to complete the task. The longer the time, the longer the activation box.

Lifeline

The lifeline symbol visualizes the passage of time as it extends away from the object. It is visualized as a dashed line and shows the sequential events that happen to an object.



Call Message

Call messages are visualized as a solid line with an arrow. It represents a call message from one object to another object.

Return Message

Return message is visualized as a dashed line with an arrowhead. It represents a reply to a call requested by an object.

Destroy Message

The destroy message symbol is represented by an X on a lifeline. This symbol destroys an object.


The Difference Between Activity and Sequence Diagrams

The activity diagram and sequence diagrams are both UML diagrams. They are both used to represent the flow of messages between objects in a system or process. However, both have specific differences in how they are represented and in their use case.

Activity diagrams provide a graphical visualization of a workflow or process in a flowchart. They are used to provide an overview of the general sequence of activities or actions for several objects in the system. It is also used to visualize how a process is executed.

Sequence diagrams focuses on how objects interact with each other in a system over time. They provide a visual representation of the behavior of objects and model their interaction within a system.

Use Cases of Activity Diagrams

Activity diagrams have several use cases and can be used for multiple purposes during the software development lifecycle.

At the planning stage of software development, activity diagrams can be used to visualize the workflow and provide an overview of the sequence of activities in a system.

During the discovery or requirement phase, the activity diagrams can help illustrate the different use cases for a system. Most importantly, during the design phase, the diagram can be used to model software elements like method, operation, and functionality.

Use Cases of Sequence Diagrams

The main use case of sequence diagrams is to illustrate the behavior and interaction of objects within a system. They are great at visualizing how a group of objects interact or work together to provide a specific output.

Sequence diagrams are great for creating usage scenarios and visualizing how a system can be used. They help provide a visual representation of the logic of every use case or scenario of a system.

The diagrams can also be used to visualize, and model the method logic of a function, procedure, or process. They can be used to model how a system functions or behaves when a user interacts with it in multiple scenarios.

Using Activity and Sequence Diagrams

Using activity and sequence diagrams can help teams stay aligned on their product and technical requirements, which is crucial for the success of any software project. With clear visualizations of the workflow and interactions, everyone on the team can have a shared understanding of the system and its requirements.

But don't let their usefulness fool you - activity and sequence diagrams can be fun too! Just try not to get too carried away with all the arrows and boxes. Remember, it's all about finding the right balance between function and entertainment.

In conclusion, activity and sequence diagrams are valuable tools for software development teams. They help with team alignment by providing a common language for discussing and understanding product and technical requirements. And who knows, with a little creativity, they might even bring a smile to your face.
